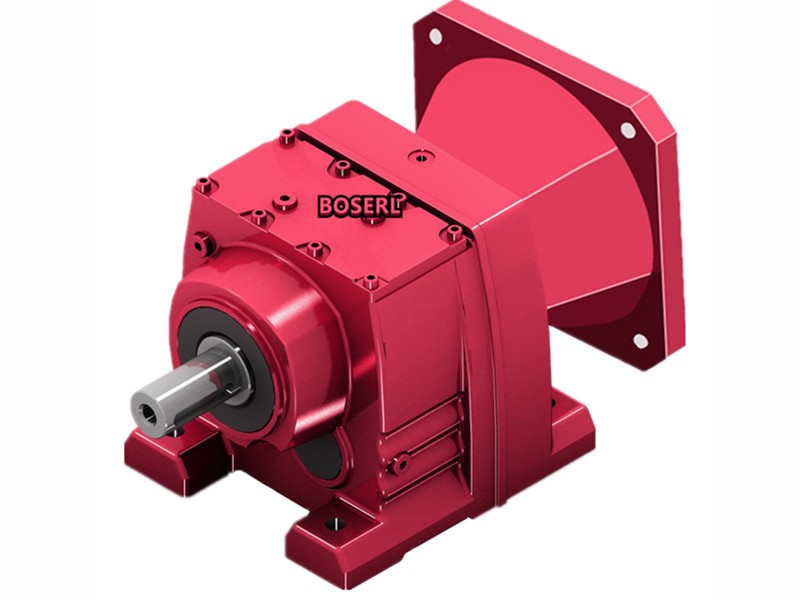

R138減速機傳動比計算：齒輪減速馬達

輸送帶參數：輪子直徑300，負載27噸，一分鐘走8米

8米÷（0.3輪子直徑×3.14）=8.49轉每分鐘

27噸換算成N=270000N

270000×0.15輪子半徑×0.06摩擦系數=2430N.m

通常確保萬無一失，我們會把輸出扭矩放大兩倍2430×2=4860N.m

電機轉數1400÷輸出轉數8.49=164.89比

4860N.m輸出扭矩÷164.89比=29.47N.m電機扭矩

29.47N.m電機扭矩?fù)Q算成功率4.67KW以上

對應的R138減速機選型參數：

型號：R138-B5.5KW

減速比：174.4

輸出轉數：8.3轉每分鐘

輸出扭矩：6290N.m

安全系數：1.25

R138減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）R系列減速機

R138臥式硬齒面斜齒輪減速機型號：

R137FDM112M4,R137FDM132L4,R137FDM132M4,R137FDM132MC4,R137FDM132ML4,R137FDM132S4,R137FDM160L4,R137FDM160M4,R137FDM160MC4,R137FDM160S4,R137FDM180L4,R137FDM180LC4,R137FDM180M4,R137FDM180S4,R137FDM200L4,R137FDM225M4,R137FDM225S4,R137FDM250M4,R137FDR112M4,R137FDR132L4,R137FDR132M4,R137FDR132MC4,R137FDR132ML4,R137FDR132S4,R137FDR160L4,R137FDR160M4,R137FDR160MC4,R137FDR160S4,R137FDR180L4,R137FDR180LC4,R137FDR180M4,R137FDR180S4,R137FDR200L4,R137FDR225M4,R137FDR225S4,R137FDR250M4,R137FDRE112M4,R137FDRE132L4,R137FDRE132M4,R137FDRE132MC4,R137FDRE132ML4,R137FDRE132S4,R137FDRE160L4,R137FDRE160M4,R137FDRE160MC4,R137FDRE160S4,R137FDRE180L4,R137FDRE180LC4,R137FDRE180M4,R137FDRE180S4,R137FDRE200L4,R137FDRE225M4,R137FDRE225S4,R137FDRE250M4,R137FDRN112M4,R137FDRN132L4,R137FDRN132M4,R137FDRN132MC4,R137FDRN132ML4,R137FDRN132S4,R137FDRN160L4,R137FDRN160M4,R137FDRN160MC4,R137FDRN160S4,R137FDRN180L4,R137FDRN180LC4,R137FDRN180M4,R137FDRN180S4,R137FDRN200L4,R137FDRN225M4,R137FDRN225S4,R137FDRN250M4,R137FDRS112M4,R137FDRS132L4,R137FDRS132M4,R137FDRS132MC4,R137FDRS132ML4,R137FDRS132S4,R137FDRS160L4,R137FDRS160M4,R137FDRS160MC4,R137FDRS160S4,R137FDRS180L4,R137FDRS180LC4,R137FDRS180M4,R137FDRS180S4,R137FDRS200L4,R137FDRS225M4,R137FDRS225S4,R137FDRS250M4,R137FDT112M4,R137FDT132L4,R137FDT132M4,R137FDT132MC4,R137FDT132ML4,R137FDT132S4,R137FDT160L4,R137FDT160M4,R137FDT160MC4,R137FDT160S4,R137FDT180L4,R137FDT180LC4,R137FDT180M4,R137FDT180S4,R137FDT200L4,R137FDT225M4,R137FDT225S4,R137FDT250M4,R137FDV112M4,R137FDV132L4,R137FDV132M4,R137FDV132MC4,R137FDV132ML4,R137FDV132S4,R137FDV160L4,R137FDV160M4,R137FDV160MC4,R137FDV160S4,R137FDV180L4,R137FDV180LC4,R137FDV180M4,R137FDV180S4,R137FDV200L4,R137FDV225M4,R137FDV225S4,R137FDV250M4,R137FDVE112M4,R137FDVE132L4,R137FDVE132M4,R137FDVE132MC4,R137FDVE132ML4,R137FDVE132S4,R137FDVE160L4,R137FDVE160M4,R137FDVE160MC4,R137FDVE160S4,R137FDVE180L4,R137FDVE180LC4,R137FDVE180M4,R137FDVE180S4,R137FDVE200L4,R137FDVE225M4,R137FDVE225S4,R137FDVE250M4,R137F-Y112M4,R137F-Y11KW,R137F-Y132M4,R137F-Y15KW,R137F-Y160M4,R137F-Y18.5KW,R137F-Y180M4,R137F-Y200M4,R137F-Y225M4,R137F-Y22KW,R137F-Y250M4,R137F-Y30KW,R137F-Y37KW,R137F-Y45KW,R137F-Y4KW,R137F-Y5.5KW,R137F-Y55KW,R137F-Y7.5KW,R137F-YEJ112M4,R137F-YEJ11KW,R137F-YEJ132M4,R137F-YEJ15KW,R137F-YEJ160M4,R137F-YEJ18.5KW,R137F-YEJ180M4,R137F-YEJ200M4,R137F-YEJ225M4,R137F-YEJ22KW,R137F-YEJ250M4,R137F-YEJ30KW,R137F-YEJ37KW,R137F-YEJ45KW,R137F-YEJ4KW,R137F-YEJ5.5KW,R137F-YEJ55KW,R137F-YEJ7.5KW,R137F-YVP112M4,R137F-YVP11KW,R137F-YVP132M4,R137F-YVP15KW,R137F-YVP160M4,R137F-YVP18.5KW,R137F-YVP180M4,R137F-YVP200M4,R137F-YVP225M4,R137F-YVP22KW,R137F-YVP250M4,R137F-YVP30KW,R137F-YVP37KW,R137F-YVP45KW,R137F-YVP4KW,R137F-YVP5.5KW,R137F-YVP55KW,R137F-YVP7.5KW,R137F-YVPEJ112M4,R137F-YVPEJ11KW,R137F-YVPEJ132M4,R137F-YVPEJ15KW,R137F-YVPEJ160M4,R137F-YVPEJ18.5KW,R137F-YVPEJ180M4,R137F-YVPEJ200M4,R137F-YVPEJ225M4,R137F-YVPEJ22KW,R137F-YVPEJ250M4,R137F-YVPEJ30KW,R137F-YVPEJ37KW,R137F-YVPEJ45KW,R137F-YVPEJ4KW,R137F-YVPEJ5.5KW,R137F-YVPEJ55KW,R137F-YVPEJ7.5KW。

R137系列減速機參數大全：同軸斜齒輪減速電機

R137F減速機配5.5KW電機參數

R137F減速機配7.5KW電機參數

R137F減速機配11KW電機參數

R137F減速機配15KW電機參數

R137F減速機配18.5KW電機參數

R137F減速機配22KW電機參數

R137F減速機配30KW電機參數

R137F減速機配37KW電機參數

R137F減速機配45KW電機參數

R137F減速機配55KW電機參數

R138減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約

推薦類似型號：R108減速機
