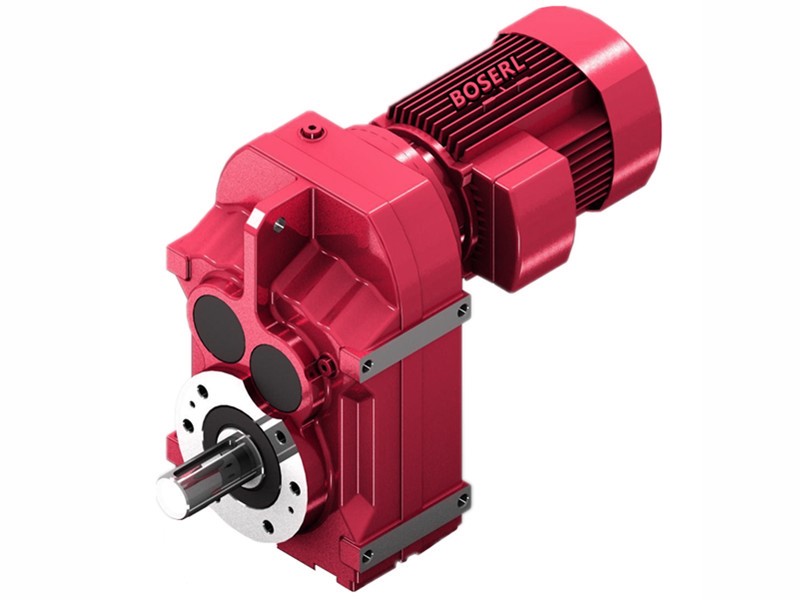

F58減速電機詳細信息
F58減速電機
訂購熱線：13360667204
F58減速電機基座參數計算公式：齒輪減速馬達
無動力滾筒輸送機參數：帶動物料4200Kg，轉桶直徑φ97mm，運行速度0.43m/s
運輸速度0.43m×60s=25.8m每分鐘
3.14(圓周率)×0.097m(轉桶直徑97mm)=0.30458m
25.8m÷0.30458m=83.39r/min輸出轉數
輸送物料4200Kg換算成N=41160n
41160n×0.0485轉桶半徑×0.06摩擦系數=119.78×2=239.55N.m輸出扭矩
1400電機輸入轉速÷83.39r/min=16.79減速比
239.55N.m輸出扭矩÷16.79減速比=14.27N.m電機扭矩
14.27N.m電機扭矩換算成電機功率=2.26KW左右
對應的F58減速電機功率型號：
型號：F58-B2.2KW
減速比：16.81
輸出轉數：85轉每分鐘
輸出扭矩：245N.m
安全系數：2.4

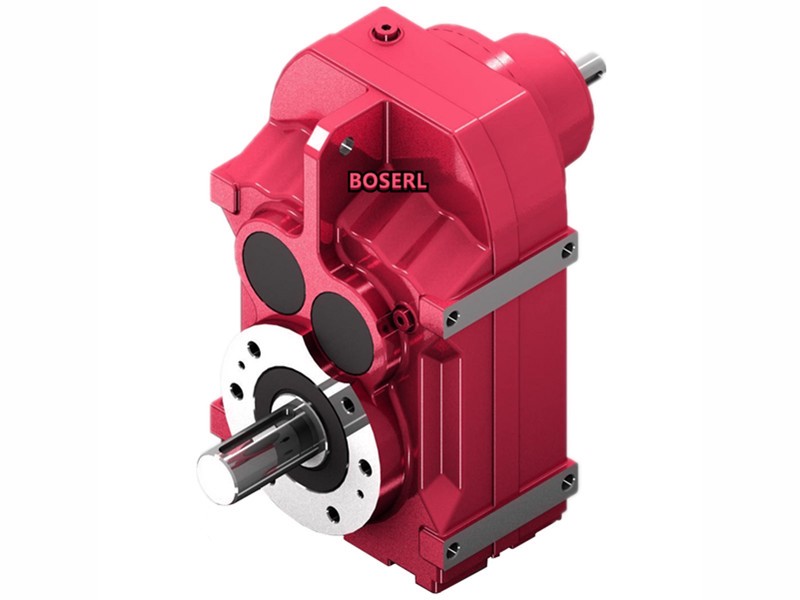

F58減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）平行軸斜齒輪減速機
F58斜齒輪平行軸減速機型號：
F58減速電機型號參數：F系列減速機
F58減速機配0.12KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| F57Y0.12KW | 0.12KW | 6.90rpm | 166N.m | 3.60 |
| F57Y0.12KW | 0.12KW | 7.50rpm | 152N.m | 3.90 |
| F57Y0.12KW | 0.12KW | 8.80rpm | 130N.m | 4.60 |
| F57Y0.12KW | 0.12KW | 10.0rpm | 113N.m | 5.30 |
F58減速機配0.18KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| F57Y0.18KW | 0.18KW | 6.60rpm | 260N.m | 2.30 |
| F57Y0.18KW | 0.18KW | 7.20rpm | 230N.m | 2.50 |
| F57Y0.18KW | 0.18KW | 8.40rpm | 200N.m | 2.90 |
| F57Y0.18KW | 0.18KW | 9.70rpm | 177N.m | 3.40 |
| F57Y0.18KW | 0.18KW | 10.0rpm | 166N.m | 3.60 |
F58減速機配0.25KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| F57Y0.25KW | 0.25KW | 6.50rpm | 365N.m | 1.65 |
| F57Y0.25KW | 0.25KW | 7.10rpm | 335N.m | 1.80 |
| F57Y0.25KW | 0.25KW | 8.30rpm | 285N.m | 2.10 |
| F57Y0.25KW | 0.25KW | 9.60rpm | 250N.m | 2.40 |
| F57Y0.25KW | 0.25KW | 10.0rpm | 230N.m | 2.60 |
| F57Y0.25KW | 0.25KW | 12.0rpm | 200N.m | 3.00 |
F58減速機配0.37KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| F57Y0.37KW | 0.37KW | 6.90rpm | 510N.m | 1.15 |
| F57Y0.37KW | 0.37KW | 7.50rpm | 470N.m | 1.30 |
| F57Y0.37KW | 0.37KW | 8.80rpm | 400N.m | 1.50 |
| F57Y0.37KW | 0.37KW | 10.0rpm | 345N.m | 1.70 |
| F57Y0.37KW | 0.37KW | 11.0rpm | 325N.m | 1.85 |
| F57Y0.37KW | 0.37KW | 13.0rpm | 280N.m | 2.10 |
| F57Y0.37KW | 0.37KW | 15.0rpm | 235N.m | 2.50 |
| F57Y0.37KW | 0.37KW | 17.0rpm | 210N.m | 2.80 |
F58減速機配0.55KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| F57Y0.55KW | 0.55KW | 8.80rpm | 595N.m | 1.00 |
| F57Y0.55KW | 0.55KW | 10.0rpm | 515N.m | 1.15 |
| F57Y0.55KW | 0.55KW | 11.0rpm | 480N.m | 1.25 |
| F57Y0.55KW | 0.55KW | 13.0rpm | 415N.m | 1.45 |
| F57Y0.55KW | 0.55KW | 15.0rpm | 355N.m | 1.70 |
| F57Y0.55KW | 0.55KW | 17.0rpm | 315N.m | 1.90 |
| F57Y0.55KW | 0.55KW | 19.0rpm | 275N.m | 2.20 |
| F57Y0.55KW | 0.55KW | 20.0rpm | 255N.m | 2.30 |
| F57Y0.55KW | 0.55KW | 23.0rpm | 220N.m | 2.70 |
F58減速機配0.75KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| F57Y0.75KW | 0.75KW | 11.0rpm | 635N.m | 0.95 |
| F57Y0.75KW | 0.75KW | 13.0rpm | 545N.m | 1.10 |
| F57Y0.75KW | 0.75KW | 15.0rpm | 465N.m | 1.30 |
| F57Y0.75KW | 0.75KW | 17.0rpm | 415N.m | 1.45 |
| F57Y0.75KW | 0.75KW | 20.0rpm | 360N.m | 1.65 |
| F57Y0.75KW | 0.75KW | 21.0rpm | 340N.m | 1.75 |
| F57Y0.75KW | 0.75KW | 24.0rpm | 290N.m | 2.00 |
| F57Y0.75KW | 0.75KW | 29.0rpm | 250N.m | 2.40 |
| F57Y0.75KW | 0.75KW | 32.0rpm | 220N.m | 2.70 |
F58減速機配1.1KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| F57Y1.1KW | 1.1KW | 17.0rpm | 615N.m | 0.95 |
| F57Y1.1KW | 1.1KW | 19.0rpm | 535N.m | 1.10 |
| F57Y1.1KW | 1.1KW | 21.0rpm | 500N.m | 1.20 |
| F57Y1.1KW | 1.1KW | 24.0rpm | 435N.m | 1.40 |
| F57Y1.1KW | 1.1KW | 28.0rpm | 370N.m | 1.60 |
| F57Y1.1KW | 1.1KW | 32.0rpm | 330N.m | 1.80 |
| F57Y1.1KW | 1.1KW | 37.0rpm | 280N.m | 2.10 |
| F57Y1.1KW | 1.1KW | 40.0rpm | 260N.m | 2.30 |
| F57Y1.1KW | 1.1KW | 47.0rpm | 220N.m | 2.60 |
F58減速機配1.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| F57Y1.5KW | 1.5KW | 24.0rpm | 590N.m | 1.00 |
| F57Y1.5KW | 1.5KW | 29.0rpm | 500N.m | 1.20 |
| F57Y1.5KW | 1.5KW | 32.0rpm | 445N.m | 1.35 |
| F57Y1.5KW | 1.5KW | 37.0rpm | 380N.m | 1.55 |
| F57Y1.5KW | 1.5KW | 40.0rpm | 355N.m | 1.65 |
| F57Y1.5KW | 1.5KW | 47.0rpm | 300N.m | 1.95 |
F58減速機配2.2KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| F57Y2.2KW | 2.2KW | 32.0rpm | 655N.m | 0.90 |
| F57Y2.2KW | 2.2KW | 37.0rpm | 560N.m | 1.05 |
| F57Y2.2KW | 2.2KW | 40.0rpm | 525N.m | 1.15 |
| F57Y2.2KW | 2.2KW | 47.0rpm | 440N.m | 1.35 |
| F57Y2.2KW | 2.2KW | 57.0rpm | 365N.m | 1.55 |
| F57Y2.2KW | 2.2KW | 67.0rpm | 310N.m | 1.90 |
| F57Y2.2KW | 2.2KW | 75.0rpm | 280N.m | 2.10 |
| F57Y2.2KW | 2.2KW | 85.0rpm | 245N.m | 2.40 |
| F57Y2.2KW | 2.2KW | 90.0rpm | 230N.m | 2.60 |
F58減速機配3KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| F57Y3KW | 3KW | 58.0rpm | 490N.m | 1.15 |
| F57Y3KW | 3KW | 69.0rpm | 415N.m | 1.45 |
| F57Y3KW | 3KW | 76.0rpm | 375N.m | 1.60 |
| F57Y3KW | 3KW | 87.0rpm | 330N.m | 1.80 |
| F57Y3KW | 3KW | 92.0rpm | 310N.m | 1.90 |
| F57Y3KW | 3KW | 108rpm | 265N.m | 2.20 |
| F57Y3KW | 3KW | 118rpm | 240N.m | 2.50 |
| F57Y3KW | 3KW | 137rpm | 205N.m | 2.90 |
F58減速機配4KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| F57Y4KW | 4KW | 69.0rpm | 550N.m | 1.10 |
| F57Y4KW | 4KW | 76.0rpm | 500N.m | 1.20 |
| F57Y4KW | 4KW | 87.0rpm | 435N.m | 1.35 |
| F57Y4KW | 4KW | 92.0rpm | 415N.m | 1.45 |
| F57Y4KW | 4KW | 108rpm | 350N.m | 1.70 |
| F57Y4KW | 4KW | 119rpm | 320N.m | 1.85 |
| F57Y4KW | 4KW | 137rpm | 275N.m | 2.20 |
| F57Y4KW | 4KW | 157rpm | 240N.m | 1.70 |
| F57Y4KW | 4KW | 178rpm | 210N.m | 1.95 |
| F57Y4KW | 4KW | 189rpm | 200N.m | 2.10 |
| F57Y4KW | 4KW | 222rpm | 172N.m | 2.40 |
| F57Y4KW | 4KW | 244rpm | 157N.m | 2.70 |
| F57Y4KW | 4KW | 282rpm | 136N.m | 3.10 |
F58減速機配5.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| F57Y5.5KW | 5.5KW | 87.0rpm | 605N.m | 1.00 |
| F57Y5.5KW | 5.5KW | 92.0rpm | 570N.m | 1.05 |
| F57Y5.5KW | 5.5KW | 108rpm | 485N.m | 1.25 |
| F57Y5.5KW | 5.5KW | 118rpm | 440N.m | 1.35 |
| F57Y5.5KW | 5.5KW | 137rpm | 380N.m | 1.55 |
| F57Y5.5KW | 5.5KW | 178rpm | 295N.m | 1.40 |
| F57Y5.5KW | 5.5KW | 188rpm | 275N.m | 1.50 |
| F57Y5.5KW | 5.5KW | 221rpm | 235N.m | 1.75 |
| F57Y5.5KW | 5.5KW | 243rpm | 215N.m | 1.95 |
| F57Y5.5KW | 5.5KW | 281rpm | 187N.m | 2.20 |
F58減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：F58減速機
關鍵詞:GF型配減速器的電機一體式_F系列減速機_F系列減速器_減速機配電機_配減速器的電機_配減速機的電機_電機配減速機_GF系列減速機_F型減速機_F型平行軸斜齒輪減速機_減速器配電機
F系列齒輪減速馬達型號：F28減速機,F38減速機,F48減速機,F68減速機,F78減速機,F88減速機,F98減速機,F108減速機,F128減速機,F158減速機
F系列電動機減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: F58減速電機 F57斜齒輪平行軸減速機 F57減速機功率 F57減速機基座尺寸 F57減速機模型 F57減速機型號參數
